4-Way Racked Sennheiser EW-DX Wireless Instrument Package with Antenna Distribution

Here's all you need to know about the 4-Way Racked Sennheiser EW-DX Wireless Instrument Package with Antenna Distribution...

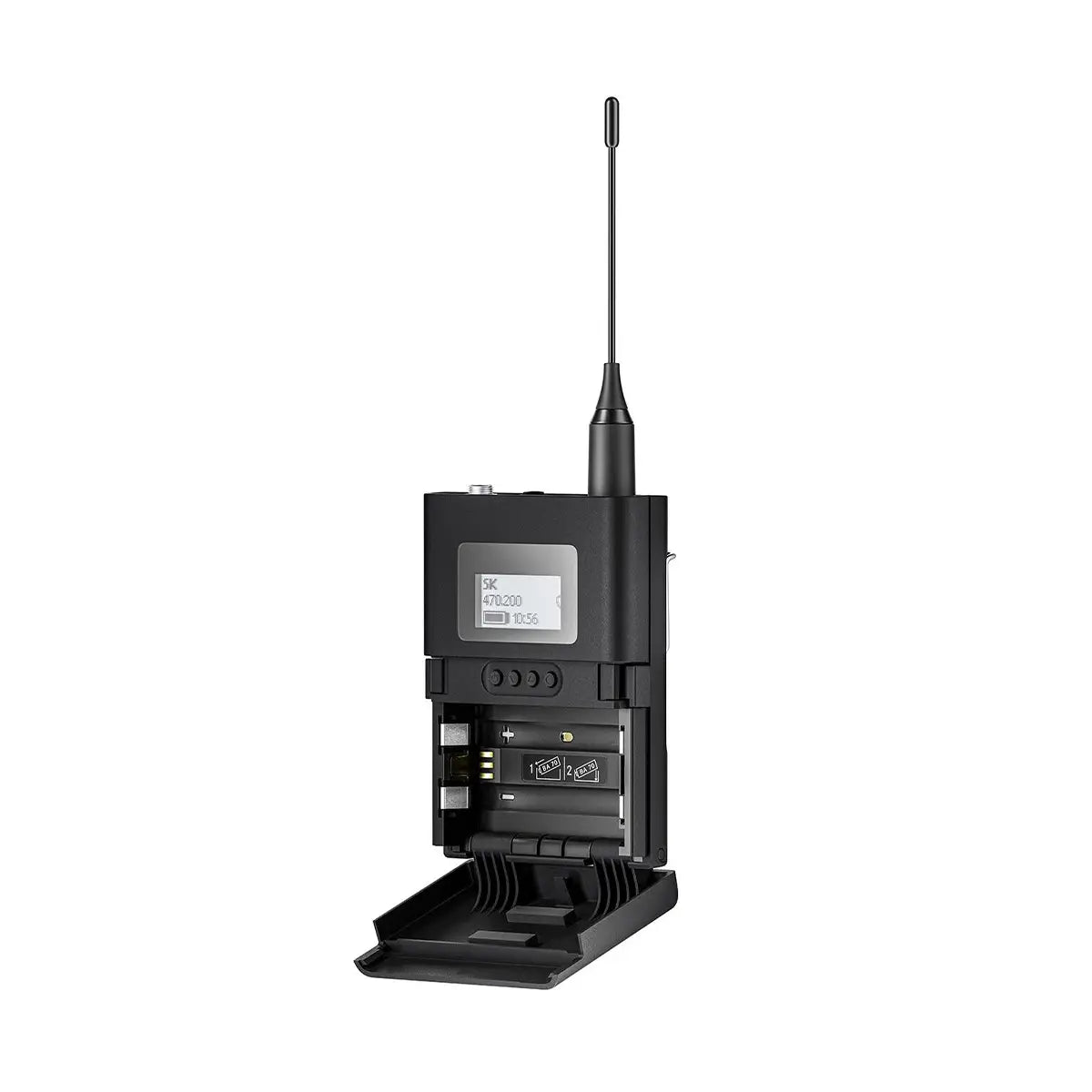

2x Sennheiser EW-DX Dual Receivers and corresponding Bodypack transmitters and Antenna Distribution for extended range. All built into a 4U Flightcase with 2U drawer, racked and ready to go.

The instrument system package includes 4x CI 1 instrument cables (Mono Jack for guitar etc).

Select your antennae for improved coverage/range.

What does the package include?

• 2x  Sennheiser EW-DX EM 2 Receivers
• 4x Sennheiser EW-DX SK Handheld Transmitters
• 4x Sennheiser CI 1 instrument cables
• 1x Sennheiser EW-D ASA Active Antenna Splitter
• 1x Sennheiser NT 12-35 CS Power Supply
• 2x Sennheiser Antenna - Your Choice of either:
  - EW-D Half Wave Dipole Antenna Rod Booster
  - EW-D ADP UHF Directional Wideband Antenna
  - A1031-UHF Passive Omni-Directional Wideband Antenna
• 4U High-quality Flightcase
• 2U Rack Drawer with foam inlay
• 2x 5M BNC 50 Ohm Antenna Cable Extensions
• 1x 5-Port Gigabit Switch
• 1U Custom Rear Rack Panel featuring:
  - 1x Powercon Mains input Socket
  - 1x Ethercon Socket
  - 4x XLR Outputs
  - 2x BNC Antenna Outputs
• 3U Blank
• Powercon Mains Cable
• Custom-built, ready to go!

About the EW-DX Systems:

• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Network-enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager and 3rd party media control systems via plug-in
• Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters
• Secure transmission of confidential content using AES 256 encryption

• Function buttons - control all the transmitter settings directly from the handheld including button lock function
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Up to 88 MHz switching bandwidth
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Digital audio trim
• Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser capsules (add separately above)


About the Flightcase:

The Ultimate 4U 19" Rack Flight Case. Featuring heavy-duty latches for longer life and stronger hold, heavy-duty 30mm aluminium edging makes the construction ultra strong, UK built with a high load rating.

• 9.5mm Birch Plywood
• Colour/Finish - Black Hexaboard
• Front and Rear Steel Rackstrip
• Front and Rear Removable Lids
• Heavy Duty Latches, Padlockable
• Recessed Flip Handles

Dimensions:

• Sleeve Depth = 350mm
• Internal Lid Depth = 45mm

Made-to-measure option:

These flightcase are made for your order. If you need a specific size, finish, colour or extras like skids, castors or a label dish please get in contact for a quote.

About the Rack Drawer:

The Flightcase will come with a 285mm Deep, 2U heavy-duty rack drawer with slam sock and key lock key

• Heavy Duty Rack Drawer With Space-Saving Flat Front Panel
• Reinforced Rack Mounting Ears
• M25 / M40 Cable Gland Knock-Outs for Cable Access at the Rear.
• With Slam latch and Keylock (comes with 2 keys)
• Foam insert

Dimensions:
 - Internal Depth: 275mm / External Depth: 286.5mm
 - Internal Width: 409mm / External Width: 482.6mm
 - Internal Height: 74mm / External Height: 88.3mm
